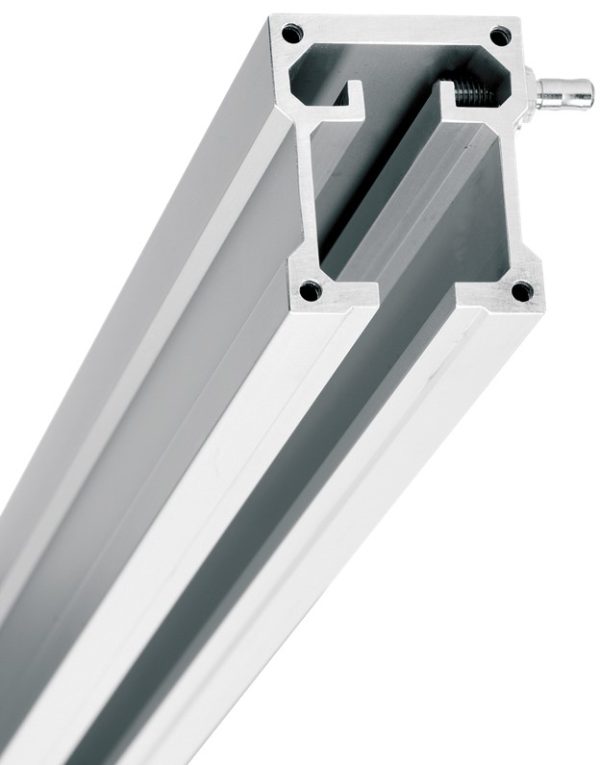

CEILING RAIL STRAIGHT (D1AA001W)
- Provides unhindered access to the patient thanks to a multifunctional room use
- Adequate interior design thanks to individual configurability
- Maximum flexibility within the intended work field enables an effective work flow
- System permits a flexible management of infusion pumps and devices with a maximum floor freedom
- Stable, high-quality profile for heavy load
Additional Information
| Material: | Aluminum, Grey |
| Bottle Holder: | Stainless steel |
| Load capacity (kg): | 80 kg (176lb 5.917184oz)/ 1.000 mm (3.28083′) |
| Maximum length/height: | 1.320 mm (4.33070′) |
| Length: | Any through the use of connectors (max. 4,000 in one piece) |
| Profile size: | 57,5 mm (2.26377″) x 47,5 mm (1.87007″) x 5 mm (0.19685″) |
| Standard length: | 1.000 mm (3.28083′) |
| Inner tube diameter: | Ø 15 mm (0.59055″) |
| Outer tube diameter: | Ø 20 mm (0.78740″) |
