CLEANMOUNT

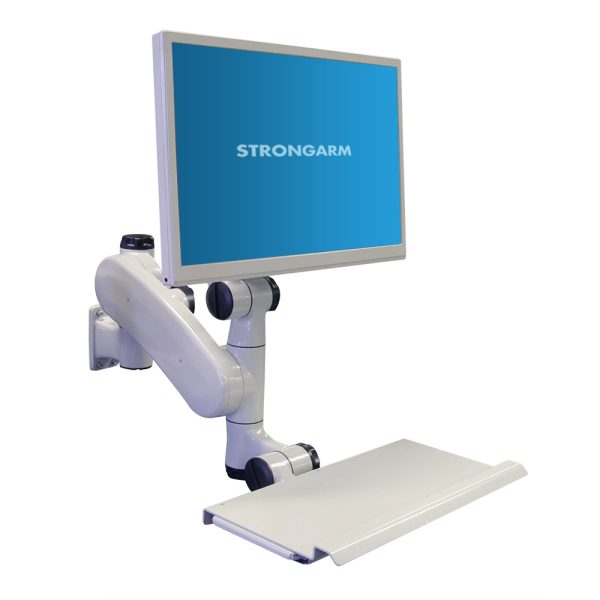

Strongarm’s CleanMount keyboard and display arm feature a fully enclosed cable passageway eliminating all external cable clutter and its smooth, non-porous surfaces are ultra-cleanable. CleanMount’s multiple pivot points and vertical articulation allow the monitor and keyboard to be quickly repositioned to achieve optimal ergonomics for each operator. Cast aluminum machine grade construction makes the CleanMount exceptionally suitable for cleanroom, healthcare, or industrial environments.
At Strongarm Designs, our focus is the quality and design of all our operator interface systems and mountings. With its robust aluminum construction, the extremely durable CleanMount arm is an excellent choice for use in locations where infection control is vital
Additional Information
FEATURES
- Internal cable passageway minimizes exposed cables
- 100% counterbalanced
- 16″ of vertical articulation
- A keyboard tray or optional keyboard enclosure with work/writing surface
- “No bounce” platform for typing
- Tilting display mount with standard VESA bracket
- Secure mechanical lock-in-place feature
- Robust aluminum construction, powder-coated (see color options)
- Remains level throughout the vertical and horizontal movement
- Pivoting ergonomic display reduces glare and enhances visibility
- Dual swivel ends allow for precise ergonomic repositioning
- Folds to 10″ depth for convenient stowaway
- Extends 33″ from mounting point, up to 52″ with optional extension
CUSTOM SOLUTIONS
- Strongarm has the expertise and experience to customize, design, and build the ideal operator interface to suit your application. Our extensive design resources enable us to engineer every feature you’ll need before in-house fabrication, assembly, finishing, testing, quality assurance, and on-time delivery. Since 1990, we’ve designed, built, and delivered over 500,000 products on time for our customers.
| CleanMount | Other Arms | |
| Warranty | Lifetime | Limited |
| Construction | Industrial Grade – most durable | Office grade – less durable |
| Installation | Ships fully assembled and pre-wired | Assembly, cable sourcing, and wiring required |
| Cleanability | Easiest – crevice-free joints | Difficult to clean |
| USB hub included | YES – simplifies replacing a failed keyboard or mouse | NO |
| Lock-in-place Safety Latch | YES | NO |
| Color Options | YES | NO |
SPECIFICATIONS
| Adjustability | Vertical Travel | 16″ |
| Swivel at Display End | 340° | |
| Swivel at Mounting End | 180° | |
| Display Tilt | Forward tilt: 15° Backward tilt: 45° |
|
| Vertical Positioning | Counter balanced vertical adjustability | |
| Display and keyboard maintain level when repositioned | ||
| Materials of Construction | Body | 356 cast aluminum alloy |
| Keyboard Tray | 5052 aluminum alloy | |
| Bearings | Horizontal Axles | Precision ground ball bearings |
| Vertical Axles | Acetal bushings | |
| Cable Management | Removable cable cover, cables are factory preinstalled | |
| Mounting Styles | Mounts on any wall or machine surface, or track mounted (track available in any length) | |
| Finish | 2-part catalyzed polyurethane antimicrobial powder coat and custom colors available | |
| Approvals and Certifications | UL, CE, U.S. GSA Advantage, OSHPD | |
KEYBOARD OPTIONS
CleanMount is available with a variety of keyboard and mouse tray options. Custom configurations also available.
 |
 |
 |
| Standard Slideout Keyboard Module (18.5″ width) | Wide Slideout Keyboard Module (22.5″ width) | Standard Slideout Keyboard Module (with slideout mouse trays) |
 |
 |
| Wide Slideout Keyboard Module (with slideout mouse trays) | Open Keyboard & Mouse Tray |
OPTIONAL DISPLAYS
Strongarm can configure your CleanMount arm with any of our display and touchscreen options. (See also: Touch Screen Technologies)
 |
 |
| Desktop Display
Standard desktop-style displays are available in a variety of sizes from 15″ to 24″ and can optionally be configured from a selection of various touch screen technologies. |
Powder Coated Display
Available in sizes from 19″ to 24″ and protected by powder coated steel, these displays are ideal for applications where rugged durability is required and can optionally be configured from a selection of various touch screen technologies. |
 |
 |
| Stainless Steel Display
Available in sizes from 19″ to 24″ and protected by powder coated steel, these displays are ideal for applications where rugged durability is required and can optionally be configured from a selection of various touch screen technologies. |
Sealed Stainless Steel Display
Similar to the stainless steel display, our sealed version is configured to allow the display cables to pass directly through the neck of the CleanMount, providing a completely sealed system. |
ACCESSORIES
Optional CleanMount accessories include: VESA dual display mount, VESA mounted hand-held barcode scanner bracket, VESA mounted RFID reader, VESA mounted rear-facing PC holder and more.
