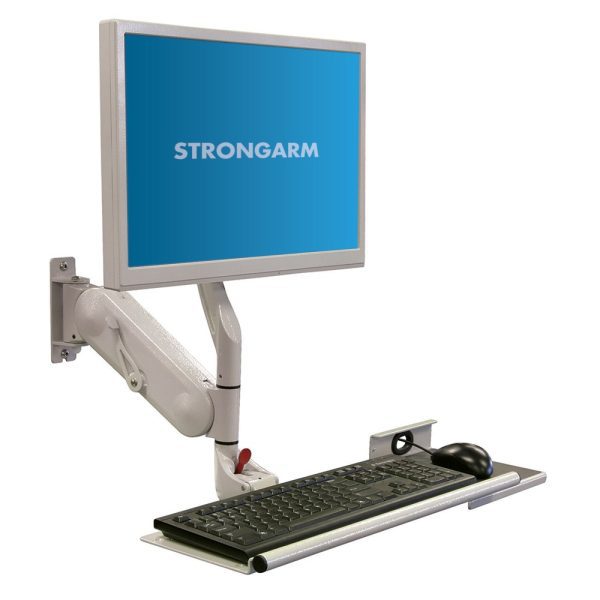

MIGHTYMOUNT
“The Light Industrial Mounting That’s HEAVY Duty”
The MightyMount defines a category of its own and is easily differentiated from common “computer store grade” keyboard and display mountings. MightyMount’s dual-axis pivot points and vertical articulation allow the monitor and keyboard to be quickly and easily repositioned to achieve optimal ergonomics for each operator. With heavy-duty, precision die-cast aluminum construction and simplified functionality, the MightyMount is a long-standing favorite among OEMs and end-users alike.
Additional Information
FEATURES
- Repositions effortlessly with 100% counter-balanced adjustability
- 12″ of vertical adjustment with lock-in-place security
- 16″ of vertical adjustment available with the Extended Mighty Mount
- Fully extends 34.75″ horizontally from mounting point, up to 52.75″ with the optional extension*
- Folds to 7″ depth for convenient storage when not in use
- Fixed or fold-up keyboard tray with optional mouse tray extension
- Remains level throughout the vertical and horizontal movement
- Dual-axis pivot action
- Integrated cable management
- Tilting display mount with standard VESA bracket
- High strength cast aluminum construction, powder-coated (see color options)
- Also available in post mount and tabletop mount configurations
*Measured from mounting point with keyboard tray fully extended.
Also available: The MightyMount Extended, which increases the vertical articulation to 16″ and increases the maximum horizontal extension from mounting point to 37.75″ (55.75″ with optional horizontal extension).
CUSTOM SOLUTIONS
Strongarm has the expertise and experience to customize, design, and build the ideal operator interface to suit your application. Our extensive design resources enable us to engineer.
every feature you’ll need before in-house fabrication, assembly, finishing, testing, quality assurance, and on-time delivery. Since 1990, we’ve designed, built, and delivered over 500,000 products on time for our customers.
| MightyMount | Other Arms | |
| Warranty | Lifetime | Limited |
| Construction | Industrial Grade – most durable | Office grade – less durable |
| Installation | Ships fully assembled | Assembly required |
| USB hub included | YES – simplifies replacing a failed keyboard or mouse | NO |
| Lock-in-place Safety Latch | YES | NO |
| Color Options | YES | NO |
SPECIFICATIONS
| Adjustability | Vertical Travel | 12″ with MightyMount 16″ with MightyMount Extended |
| Swivel at Display End | 340° | |
| Swivel at Mounting End | 180° | |
| Display Tilt | Forward tilt: 15° Backward tilt: 45° |
|
| Vertical Positioning | Counter balanced vertical adjustability | |
| Display and keyboard maintain level when repositioned | ||
| Materials of Construction | Body | 319F cast aluminum alloy |
| Keyboard Tray | 5052 aluminum alloy | |
| Bearings | Horizontal Axles | Precision ground ball bearings |
| Vertical Axles | Acetal bushings | |
| Cable Management | Internal/External cable covers | |
| Mounting Styles | Mounts on any wall or machine surface, or track mounted (track available in any length) | |
| Finish | 2-part catalyzed polyurethane paint powder coat (custom colors available) | |
| Approvals and Certifications | UL, CE, U.S. GSA Advantage, OSHPD | |
KEYBOARD OPTIONS
MightyMount is available with a variety of keyboard and mouse tray options. Custom configurations also available.
 |
 |
 |
| Standard Slideout Keyboard Module (18.5″ width) | Wide Slideout Keyboard Module (22.5″ width) | Standard Slideout Keyboard Module (with slideout mouse trays) |
 |
 |
| Wide Slideout Keyboard Module (with slideout mouse trays) | Open Keyboard & Mouse Tray |
OPTIONAL DISPLAYS
Strongarm can configure your MightyMount arm with any of our display and touch screen options. (See also: Touch Screen Technologies)
 |
 |
| Desktop Display
Standard desktop-style displays are available in a variety of sizes from 15″ to 24″ and can optionally be configured from a selection of various touch screen technologies. |
Powder Coated Display
Available in sizes from 19″ to 24″ and protected by powder coated steel, these displays are ideal for applications where rugged durability is required and can optionally be configured from a selection of various touch screen technologies. |
 |
 |
| Stainless Steel Display
Available in sizes from 19″ to 24″ and protected by powder coated steel, these displays are ideal for applications where rugged durability is required and can optionally be configured from a selection of various touch screen technologies. |
Sealed Stainless Steel Display
Similar to the stainless steel display, our sealed version is configured to allow the display cables to pass directly through the neck of the CleanMount, providing a completely sealed system. |
ACCESSORIES
Optional MightyMount accessories include: VESA dual display mount, VESA mounted hand-held barcode scanner bracket, VESA mounted RFID reader, VESA mounted rear-facing PC holder and more.
